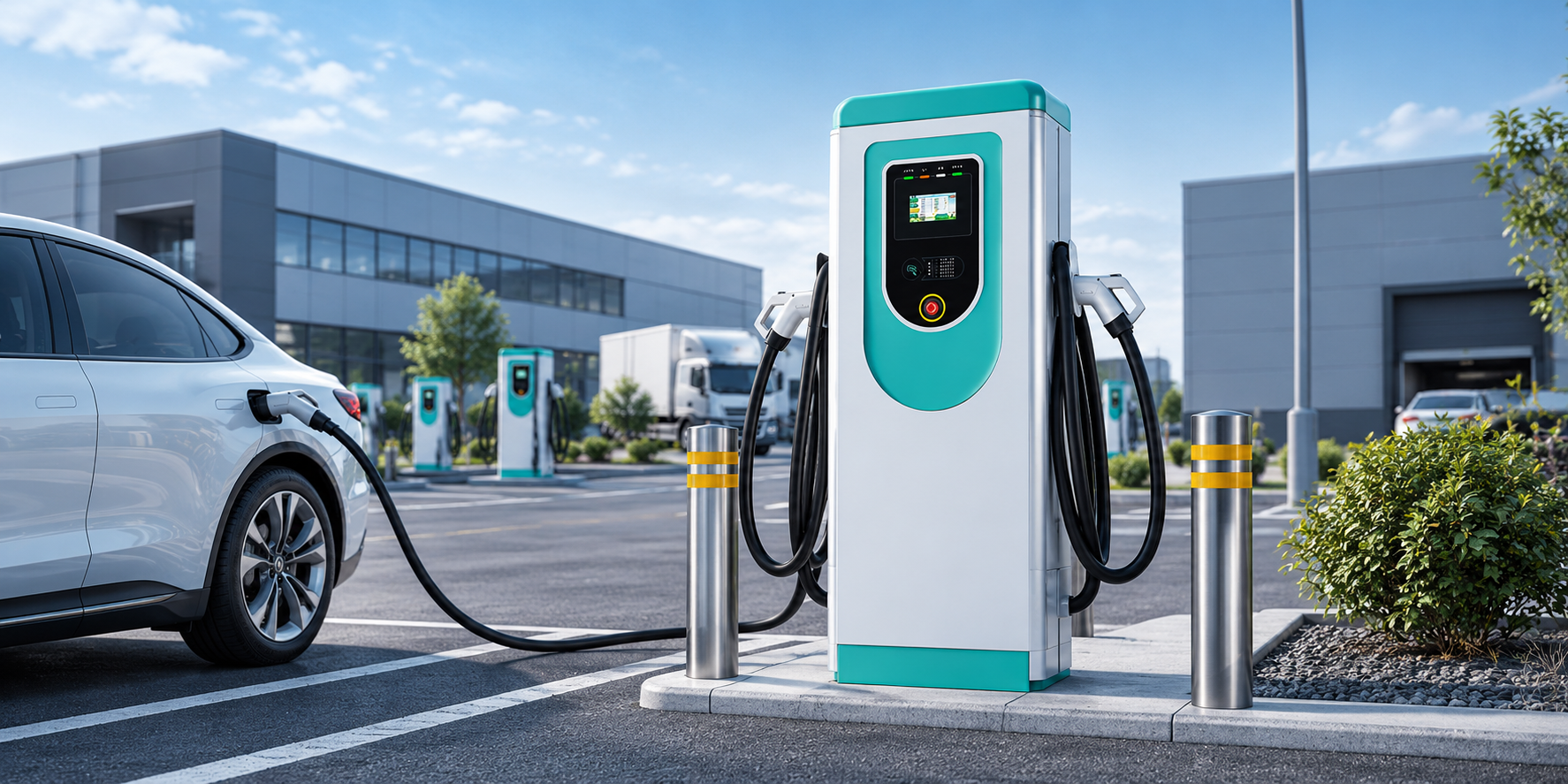

Dual-Gun Power for Every Site (EV-AC03201T)
A floor-standing commercial AC charging station with two Type 2 outputs, up to 43 kW of dynamically shared power, and built-in OCPP cloud connectivity — deployed and managed as fleet-ready infrastructure, not a one-off unit.
Engineered for High-Traffic Commercial Sites
From dynamic dual-gun load balancing to networked remote management, AC03201T is built to keep two vehicles charging at once, day after day.
Smart Power Sharing Across Two Vehicles
Two Type 2 outputs draw from a shared 43 kW pool, with an onboard controller dynamically balancing current between both guns so each connected vehicle keeps charging at the fastest safe rate.
Networked Management, Built In
A 7-inch color touchscreen paired with OCPP 1.6J connectivity lets operators monitor sessions remotely, push OTA updates, and manage access through RFID cards or a mobile app.
Built to Stand Up to Daily Traffic
A powder-coated steel pedestal enclosure, IP54 weatherproofing, and two 5m tethered Type 2 cables make AC03201T ready for outdoor lots and heavy day-to-day use.
Run Every Station From One Dashboard
AC03201T ships OCPP 1.6J–ready, so it plugs into the charge point management platform your team already uses — or the one we help you set up.
Engineered for Every Environment
From extreme winter cold to intense summer heat, AC03201T is sealed and IP54 rated for outdoor commercial deployment.
01Sand
Sand & Dust Resistant
Sealed enclosure effectively blocks fine dust and particles from internal components.
02Freeze
Freeze Resistant
Tested to operate reliably in sub-zero conditions down to −30°C.
03Water
Weatherproof (IP54)
IP54-rated protection guards against rain, splashing water, and airborne dust.
04Heat
Heat Resistant
Advanced thermal dissipation maintains stable output up to +50°C ambient.
Everything Under the Hood
Detailed electrical, physical, connectivity, and certification specifications for AC03201T.
| Input Voltage | AC 380V – 415V (3-Phase) |
| Rated Power | 43 kW (Dual Gun, Dynamic Load Balancing) |
| Max Current | 63A Total / 32A per Gun |
| Outputs | 2 × IEC 62196–2 (Type 2), Tethered |
| Cable Length | 5m (16.4ft) per Gun |
| Charging Mode | Mode 3, AC |
| Ingress Protection | IP54 |
| Operating Temp. | −30°C to +50°C |
| Display & Control | 7-inch Color Touchscreen + LED Status Ring |
| Enclosure | Powder-Coated Steel |
| Mounting | Floor-Standing Pedestal |
| Communication | OCPP 1.6J / 4G / Wi-Fi / Ethernet |
| Authentication | RFID Card + Mobile App |
| Network Management | Remote Monitoring & OTA Updates |
| Safety & Compliance | UL, CE, FCC, RoHS, Energy Star, SAA, CB Scheme, UKCA |
| Warranty | 3 Years Standard |
| Deployment Support | Site assessment & installer network |
| Shipping | Global FOB / DDP available |
Note: specifications above follow standard configuration for this charger class and should be confirmed against the factory datasheet before publishing.
Installation & Site Services
Deploying a floor-standing station involves more than the hardware. Our team supports the project from planning through commissioning.
Built for Commercial Operators
Two guns, one pedestal, one dashboard — sized for operators who need to charge more vehicles without doubling the footprint or the management overhead.
Parking Operators
Dual-gun output and per-session reporting help operators bill accurately and maximize bay turnover.
Fleet & Depot Operators
OCPP connectivity and remote monitoring keep fleet vehicles charging on a predictable schedule.
Property & Facility Managers
Site services and a certified installer network take the deployment work off your team's plate.
Retail & Hospitality
App-based authentication and a 7-inch touchscreen give guests a self-serve charging experience.
UL ListedCE (EU)FCC (USA)UKCA (UK)SAA (AU)CB SchemeEnergy StarRoHS
Warranty & After-Sales Network
A charging station only earns its keep if it stays online. Support continues well past commissioning day.
Bring AC03201T to Your Site
Tell us about your location and we'll put together a proposal covering hardware, installation support, and cloud platform onboarding.
