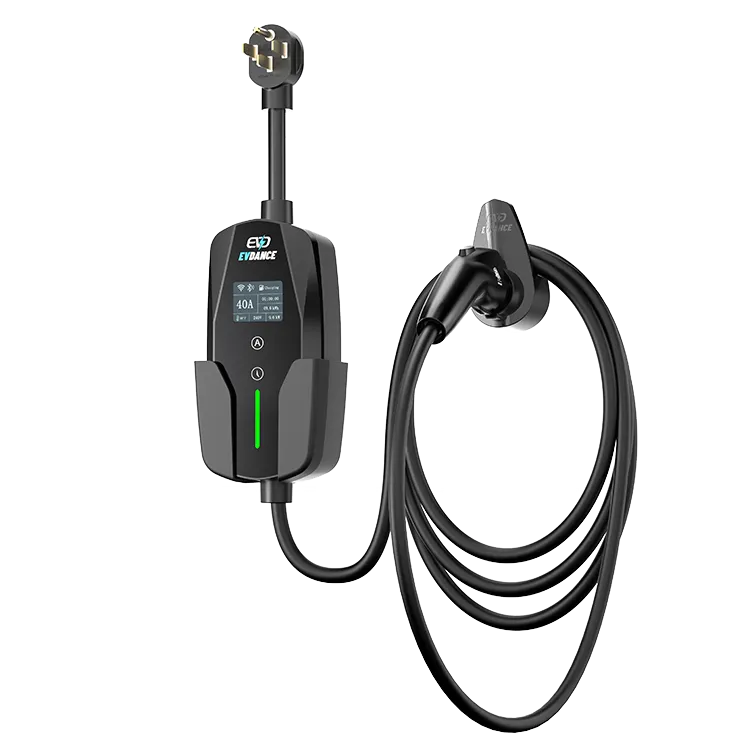

Portable Charging (EV‑ACS4005T)
A portable EV charger delivering up to 9.6 kW of reliable output, featuring adjustable 16A to 40A current control, a 1.77-inch TFT display, NACS connector, and rugged IP66 weatherproofing.
Engineered for High-Power Tesla Charging
From adjustable 40A current levels to clear LCD telemetry, EV-ACS4005T delivers exceptional speed and reliability.
High-Performance 40A Current Output
Operating on AC 240V input, the EV-ACS4005T delivers up to 40A of maximum output current, yielding a rapid 9.6 kW power delivery designed specifically for NACS / Tesla vehicle compatibility.
Flexible Current Settings (16A to 40A)
Easily adjust your charging speed to match your home circuit breaker limitations with multi-stage adjustable amperage settings at 16A, 24A, 32A, and the full 40A.
Clear Telemetry & Extended Reach
Monitor your active charging parameters instantly on the 1.77-inch TFT LCD screen, paired with a generous 25FT or 28FT cable length and durable PC + TPU + Copper construction.
Engineered for Every Environment
From freezing winter cold to intense summer heat, EV-ACS4005T is fully sealed and IP66 rated for outdoor durability.
01Sand
Sand & Dust Resistant
Sealed enclosure effectively blocks fine dust and particles from internal electronics.
02Freeze
Freeze Resistant
Tested to operate dependably in sub-zero winter temperatures down to −30°C.
03Water
Waterproof (IP66)
IP66 ingress protection defends against heavy rain, snow, and direct water spray.
04Heat
Heat Resistant
Advanced thermal dissipation maintains stable high-power delivery up to +50°C ambient.
Everything Under the Hood
Detailed electrical, physical, and certification specifications for EV-ACS4005T.
| Input Voltage | AC 240V |
| Rated Power | 9.6 kW |
| Max Current | 40A Max |
| Adjustable Range | 16A / 24A / 32A / 40A |
| Grid Plug | NEMA 14-50P |
| Vehicle Connector | Tesla NACS |
| Cable Length | 25FT / 28FT options |
| Ingress Protection | IP66 |
| Operating Temp. | −30°C to +50°C |
| Display Screen | 1.77-inch TFT LCD Screen |
| Materials | PC + TPU + Copper |
| Mounting | Portable / Wall-mountable |
| Certifications | CE, FCC |
| Environmental | RoHS Compliant |
| Warranty | 3 Years Standard |
| OEM / ODM | Available on request |
| Branding | Private-label options |
| Support | Dedicated Account Engineer |
| Shipping | Global FOB / DDP available |
Built for Bulk, Customized for You
From private-label branding to container-load shipments, EV-ACS4005T scales from a handful of samples to your full program.
Built for High-Power Tesla Charging Environments
Professional portable high-power charging tailored for diverse residential and commercial applications.
Residential Driveway
Plug into NEMA 14-50 outlets for fast 9.6 kW overnight Tesla replenishment.
Commercial Parking
Reliable high-amperage charging solution for Tesla visitor bays and lots.
Tesla Fleet Operations
Adjustable 40A power output built for heavy daily fleet use and travel.
Workplace Charging
IP66 weatherproof design and clear TFT LCD display for outdoor employee parking.
UL ListedCE (EU)FCC (USA)UKCA (UK)SAA (AU)CB SchemeEnergy StarRoHS
Bring EV-ACS4005T to Your Market
Direct from the manufacturer — engineering, tooling, and production under one roof, with white-label and OEM/ODM programs built for brand partners worldwide.
